HP69 Pump
CAS No:
HP69 series phthalic anhydride pumps were developed as Multistage, single- suction, vertical centrifugal pumps, with enclosed impeller and diffuser, Pump discharge pipe with a jacket for heating, pump shaft seals with maintenance-free packing.' The shaft was supported with plain bearings in the pump casing and bearing spiders, self-lubrication is introduced in plain bearings, the overall length under base plate up to 10m.
Pumps' design is in conformity with ISO5199 standard.
For pumping phthalic anhydride or any high temperature, dangerous, easy solidified medium.
Capacities 4~500 m³/h
Heads 15~150 m
Temperatures -20~+260 C
Temperatures -20~+260 C
Pressures 40 bar
Support OEM / ODM, please send your requirements to us.

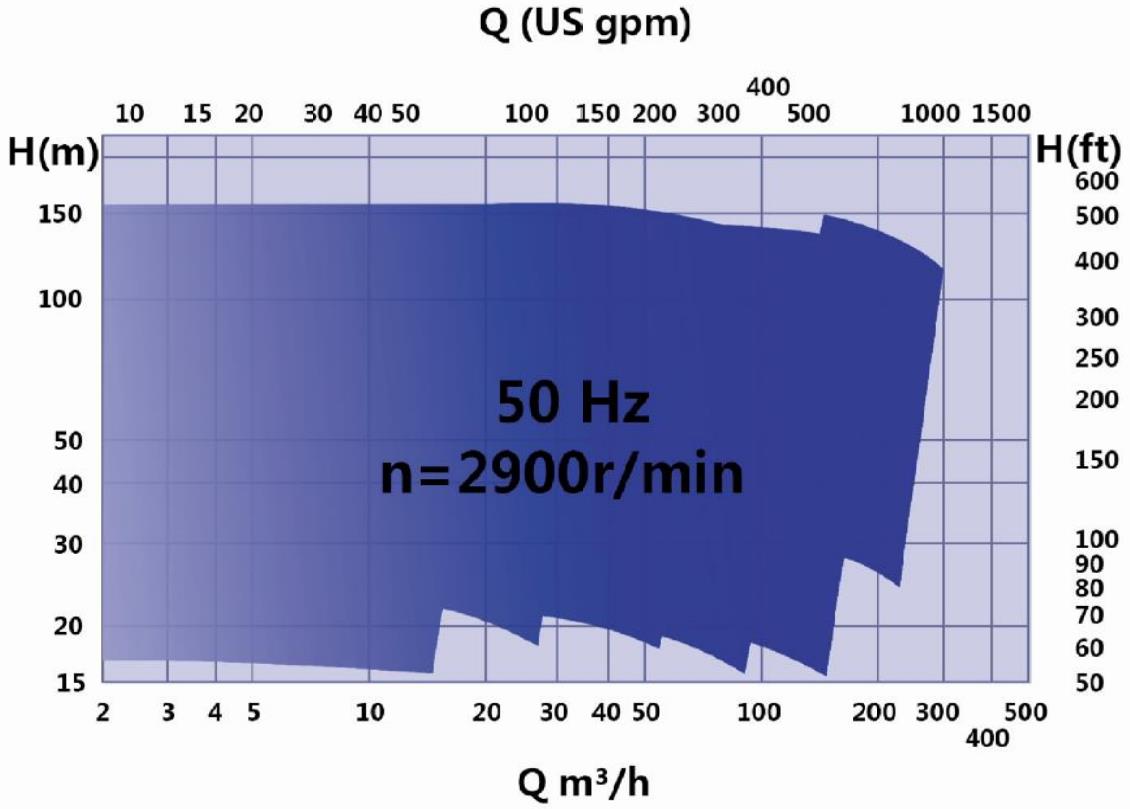

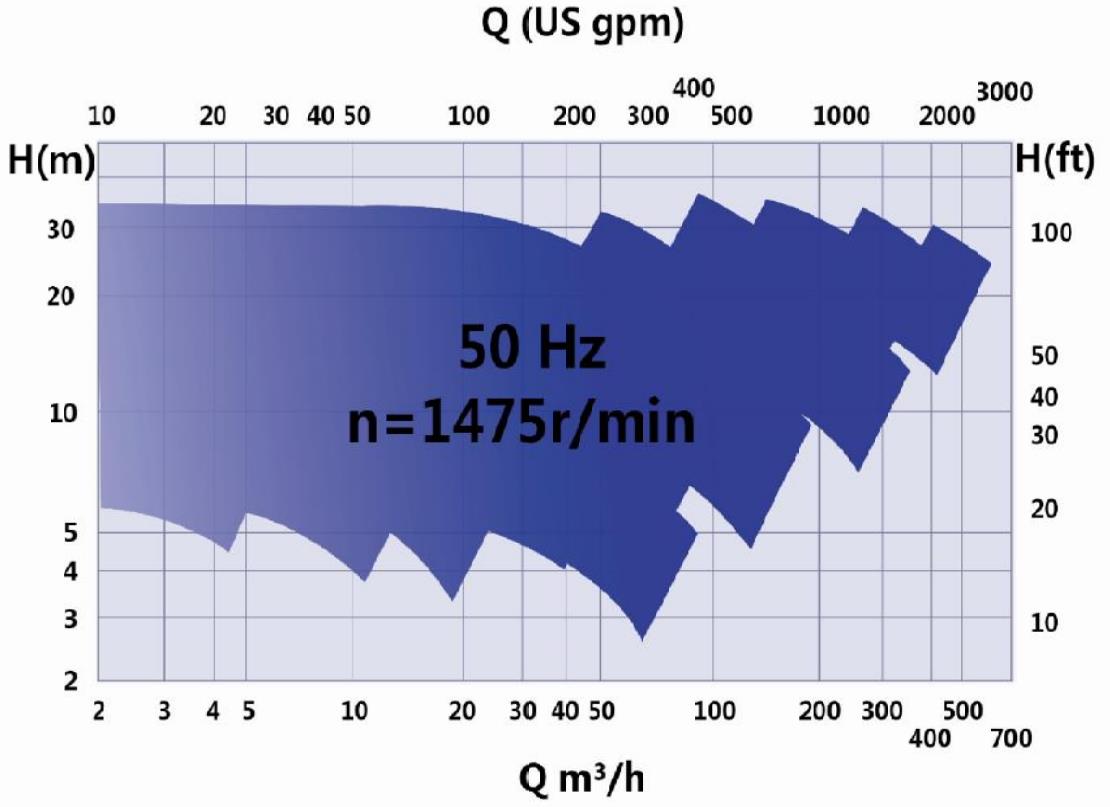

Performance| Range
Performance| Range
CAS No:
HP69 series phthalic anhydride pumps were developed as Multistage, single- suction, vertical centrifugal pumps, with enclosed impeller and diffuser, Pump discharge pipe with a jacket for heating, pump shaft seals with maintenance-free packing.' The shaft was supported with plain bearings in the pump casing and bearing spiders, self-lubrication is introduced in plain bearings, the overall length under base plate up to 10m.
Pumps' design is in conformity with ISO5199 standard.
For pumping phthalic anhydride or any high temperature, dangerous, easy solidified medium.
Capacities 4~500 m³/h
Heads 15~150 m
Temperatures -20~+260 C
Temperatures -20~+260 C
Pressures 40 bar
Support OEM / ODM, please send your requirements to us.
Performance| Range
Performance| Range
