MP01 Pump
CAS No:

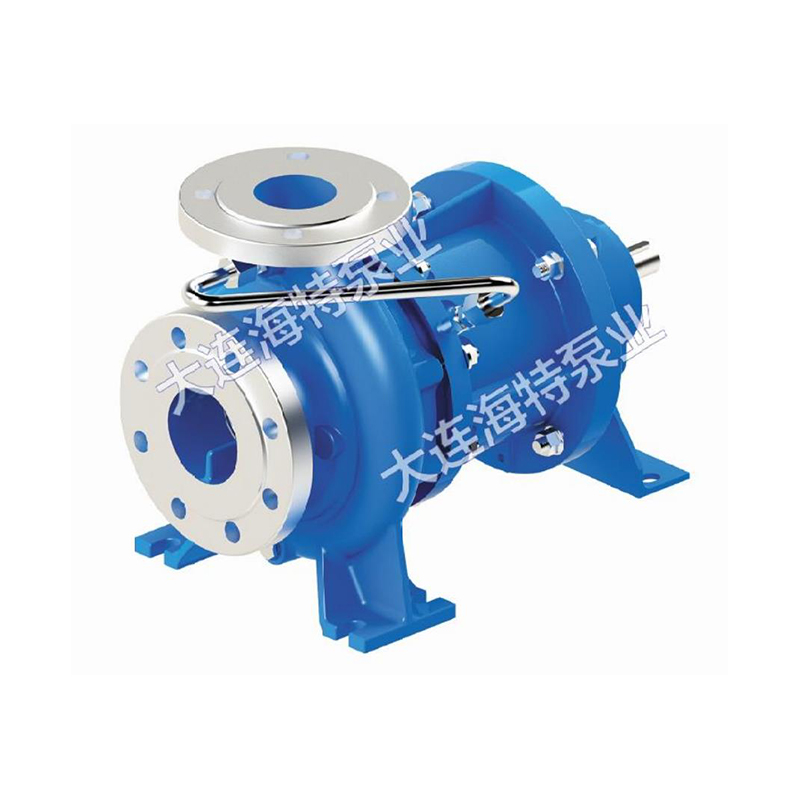

Pumps of the series MP01 are developed as single-stage, single-suction, radial split, Magnetic driven pumps. pumps' design is in Conformity with API685/ GB3215.
A real leakage free pump for it is sealed only with static sealing gaskets and driven via magnetic coupling.

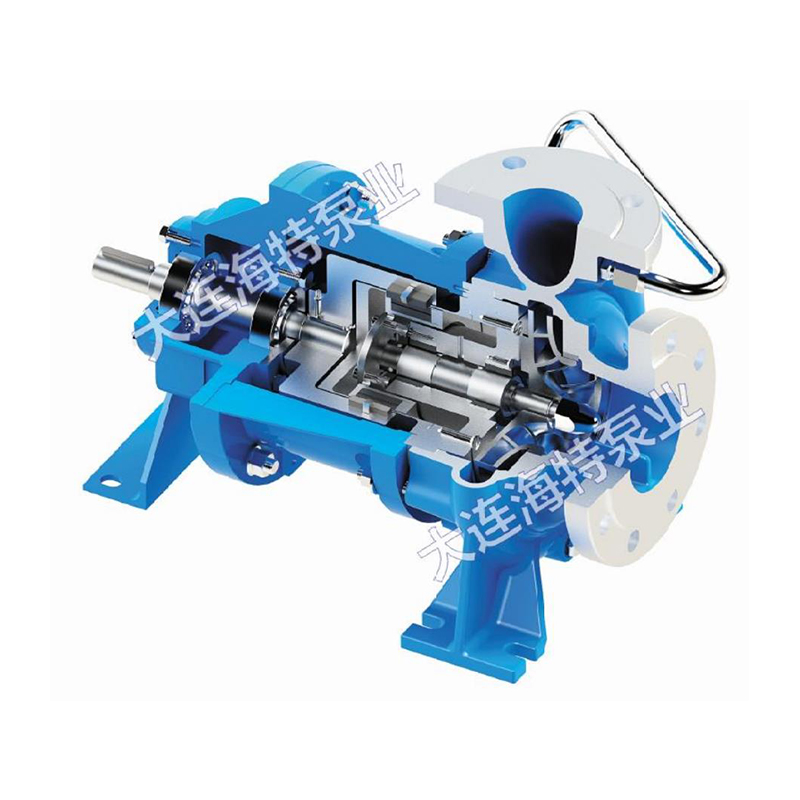

lsolation can is made of Haste Alloy C-276 by rolling as a mono-block. Haste Alloy has high electrical resistance with lttle magnetic loss that saves power and enhances safety and sealing. Max. temperature is 450°C and Min.10-year running life. Magnets are made out of special rare earth with dedicated treatment that offers higher demagnetization temperature and good vibration resistance for long time.
These pumps are suitable for clean or polluted liquids, cold or hot, chemically neutral or corrosive liquids.
Capacities ~1000 m³/h
Heads ~150 m
Temperatures -80~+300 C
Pressures ~50 bar
Support OEM / ODM, please send your requirements to us.

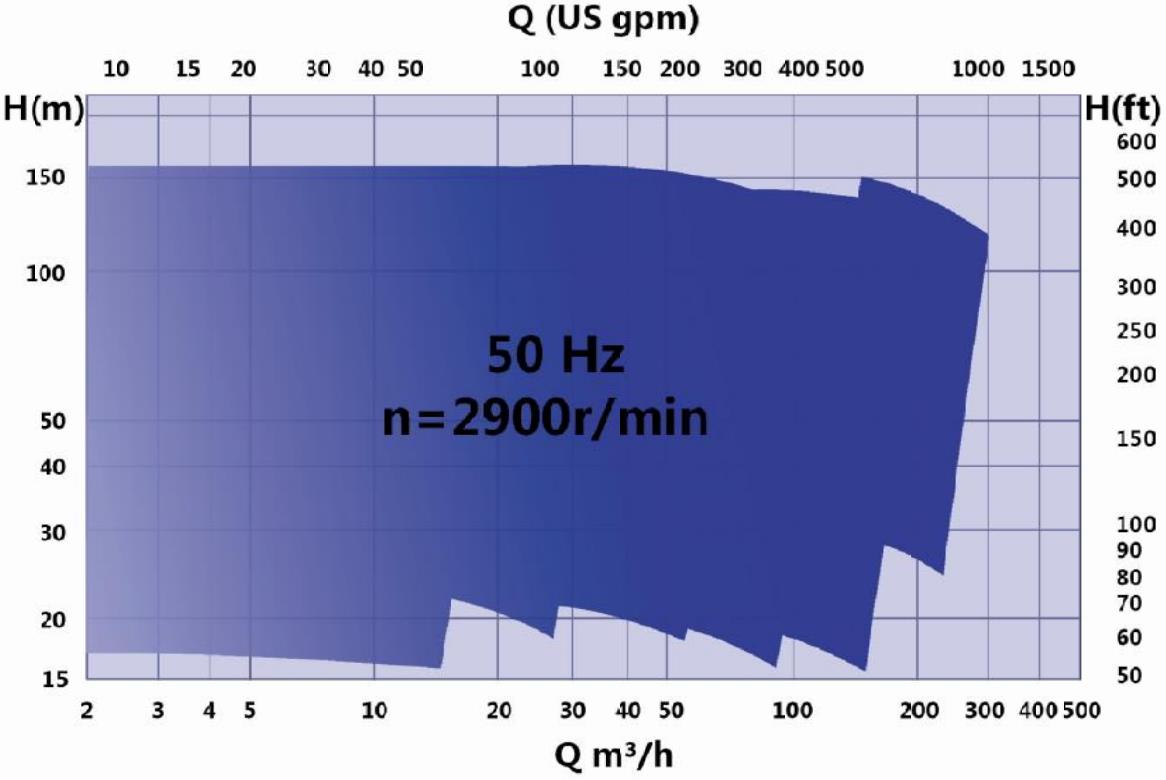

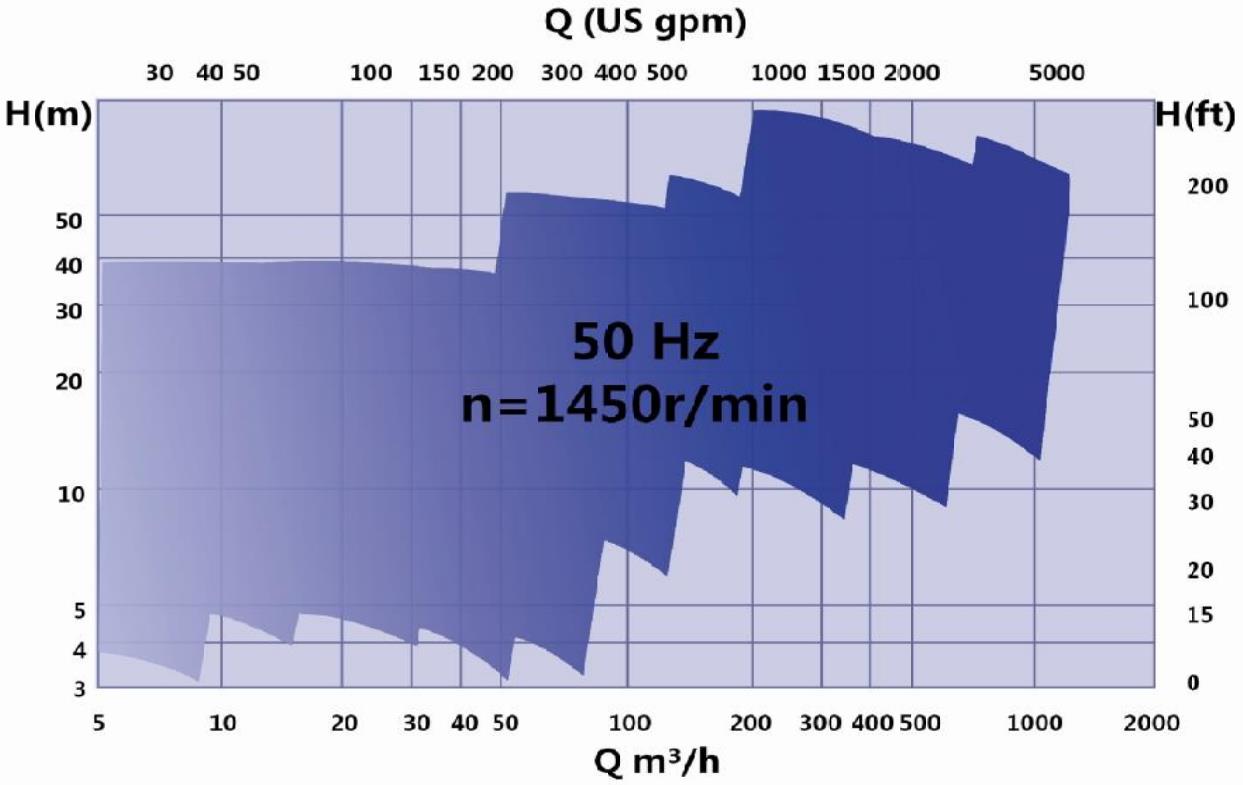

Performance| Range
